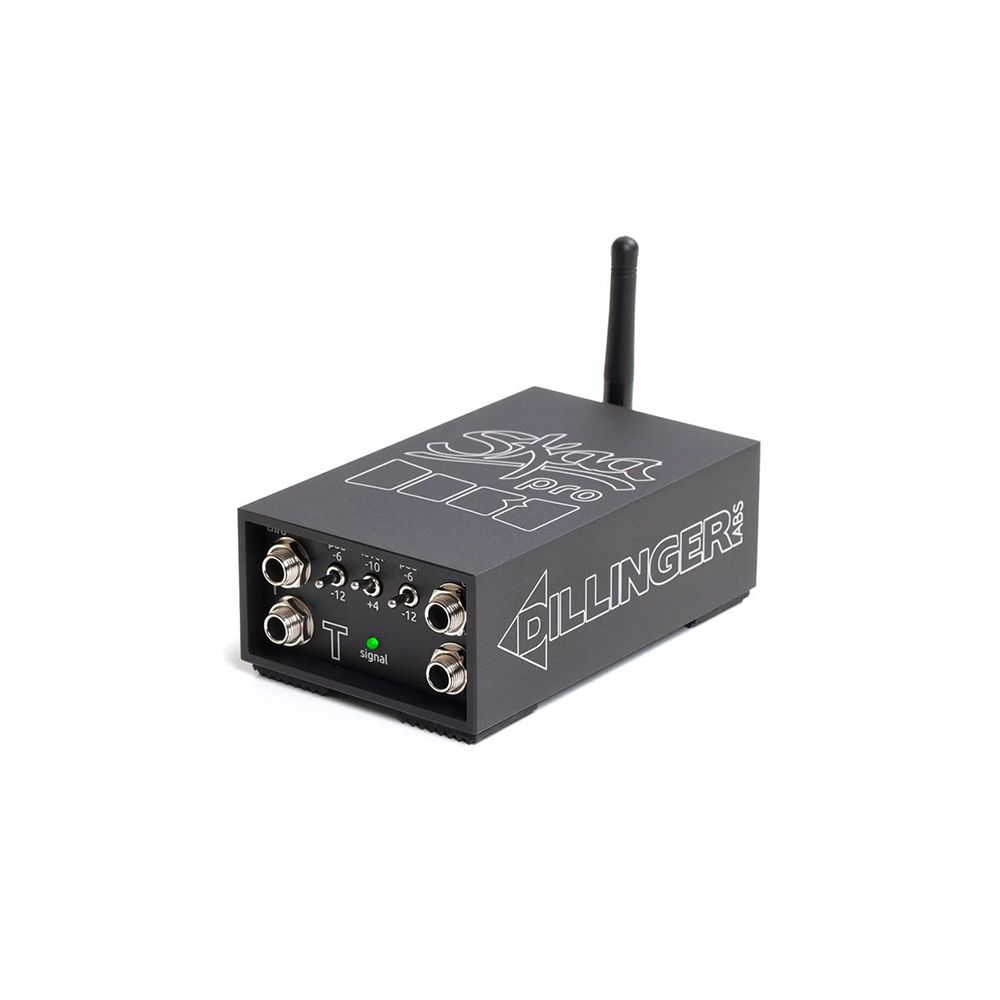

Dillinger Labs DANI Pro – SKAA Wireless Audio Transmitter

Turn almost any sound system into a flexible wireless setup with the Dillinger Labs DANI Pro SKAA transmitter. Designed for DJs, venues, performers, and event professionals, DANI Pro lets you transmit high-quality stereo audio wirelessly to compatible speakers and receivers using SKAA wireless audio technology.

With professional audio inputs, low-latency transmission modes, and convenient thru outputs, DANI Pro integrates easily into portable DJ systems or full-scale PA rigs.

---

Professional Wireless Audio with SKAA

The Dillinger Labs DANI Pro SKAA transmitter uses SKAA wireless audio technology, a wireless platform built specifically for live audio environments where reliability and synchronization are critical.

DANI Pro features two latency modes depending on your system requirements:

• SKAA Pro Mode – 19 ms latency
  Optimised for performance applications like DJing, scratching and live monitoring. Supports up to 2 receivers simultaneously.
• SKAA Mode – 36 ms latency
  Ideal when you need to broadcast audio to more speakers. Supports up to 4 receivers from a single transmitter.

This flexibility allows you to prioritise either ultra-low latency or wider speaker coverage depending on the event.

---

High-Quality Wireless Audio Performance

The DANI Pro is designed to maintain professional audio quality throughout the wireless signal chain.

Key audio specifications include:

• Digital resolution: 48 kHz / 16-bit stereo transmission
• Frequency response: 20 Hz – 20 kHz (±0.3 dB)
• THD+N: <0.03%
• Signal-to-Noise Ratio: >94 dB A-weighted
• Professional Burr-Brown input buffers and converters for clean, accurate audio conversion.

Instead of digitally attenuating the audio before transmission, DANI Pro remotely controls the gain in downstream devices, maintaining optimal signal-to-noise performance at any volume level.

---

Professional Inputs and Thru Connections

The Dillinger Labs DANI Pro SKAA transmitter is designed to integrate easily into professional audio systems.

Dual Line Inputs

• 2 × ¼" TRS balanced/unbalanced line inputs
• Accepts signals from consumer headphone outputs up to +24 dBu professional mixer outputs
• Selectable input pads (0 dB, –6 dB, –12 dB) to optimise signal levels

Inputs can be used for:

• Standard Left / Right stereo
• Two independent signals such as FOH and cue mix

---

Parallel Thru Outputs

DANI Pro also includes:

• 2 × ¼" TRS thru outputs wired in parallel with the inputs.

These allow your audio signal to continue through the system while simultaneously being transmitted wirelessly.

This is extremely useful for hybrid systems such as:

• Wired front speakers with wireless rear speakers
• Running multiple DANI transmitters to expand your wireless speaker count
• Sending audio to both a recording device and wireless PA

---

Portable, Battery Powered Design

The Dillinger Labs DANI Pro SKAA transmitter is designed for mobile event professionals who need flexibility and quick setup.

Key hardware features include:

• Internal rechargeable Li-Ion battery (up to 14 hours runtime)
• USB-C charging from any USB power source
• Battery level indicator with warning system
• Reliable indoor wireless range up to ~50 m depending on environment

This makes it ideal for mobile DJs, temporary installations, and events where running signal cables isn’t practical.

---

Flexible Ways to Use DANI Pro

One of the biggest advantages of the DANI Pro transmitter is its versatility across different types of sound systems.

---

Wireless DJ System

Pair the transmitter with Dillinger Labs Death From Above speakers to create a simple, cable-free DJ system.

Connect your controller or mixer to DANI Pro and broadcast audio wirelessly to the speakers.

Perfect for:

• Wedding DJs
• Corporate events
• Small dancefloors
• Portable DJ setups

---

Full Wireless PA System

Combine the transmitter with:

• Dillinger Labs Death From Above speakers
• Dillinger Labs Death From Below subwoofer

This creates a compact wireless PA system delivering full-range sound with minimal cabling and extremely fast setup.

Ideal for mobile DJs, venues, and temporary event systems.

---

Wireless Expansion for Your Main PA

DANI Pro also works perfectly alongside traditional wired sound systems.

Use the thru outputs to feed your main wired speakers while simultaneously transmitting audio wirelessly to additional SKAA speakers.

This allows you to easily add:

• Wireless delay speakers
• Fill speakers in large rooms
• Remote speakers in another area
• Extra subwoofers on the dancefloor

All without running long signal cables through the venue.

---

Key Features

• SKAA / SKAA Pro dual-mode wireless transmitter
• 19ms or 36ms latency options depending on system requirements
• 48 kHz / 16-bit professional audio transmission
• 2 × balanced ¼" TRS inputs
• 2 × parallel thru outputs for hybrid systems
• Supports up to 4 wireless receivers
• Internal 14-hour rechargeable battery
• Compact, portable design
• Designed for DJs, venues, and professional audio setups

---

Add Wireless Freedom to Any Sound System

The Dillinger Labs DANI Pro is the easiest way to add professional wireless audio to your setup. Whether you're running a portable system with Dillinger Labs Death From Above speakers, building a compact wireless PA with the Dillinger Labs Death From Below subwoofer, or expanding a larger sound system, DANI Pro gives you the flexibility to place speakers exactly where they’re needed.

Less cabling. Faster setup. Greater flexibility.
